  • Part Number: 50406330
  • Realtime Availability: in stock In Stock Out of stock You can purchase this product but it's out of stock

Kifco T40 X 1320 Ag-Rain Water Reel 4" ID x 1320 Length

$64,940.00 $67,940.00
design--v2
SEE IT ON YOUR PROPERTY
Our free design service helps determine the most cost effective and efficient reel for you property
  • Barcode:





Turbine Driven Water-Reel® with 4.0” ID x 1320’ MDPE Tube. Portable, Simple, Reliable irrigation for pastures, cash crops, reclamation, mining and construction sites, and large sports complexes. The UV resistent MDPE Tube is extremely durable and carries a 5 year pro-rated warranty against manufacturing defects. Rugged construction proven by over 40 years of production and over 35,000 Kifco Water-Reels® sold.

  • Heavy duty hydraulic stabilizer legs are operated by your tractor’s hyrdaulics
  • Efficient radial turbine provides retraction speed control
  • A two speed gearbox and three pulley settings provide six speed operation
  • Taky (Electronic Tachometer) which measures retraction speed, length of run, tube remaining and time to end of run
  • Liquid filled inlet pressure gauge
  • 30’ x 4” supply hose with 4” male ring lock supply end
  • Tube mis-wrap safety shutoff
  • Automatic shutoff of drive mechanism
  • Hand operated hydraulic jack
  • Chain operated level wind system
  • Speed compensation for consistent retraction speeds and application rate for the entire length of run
  • Adjustable width guncart which allows for offset gun operation & added width for stability
  • Hydraulic operated guncart lift
  • Galvanized heavy duty chassis
  • Heavy ST7 chassis is equipped with dual, adjustable width axles for added stability
  • Adjustable height drawbar hitch for easy towing
  • Ball bearing turntable
  • 1 Year Kifco warranty
  • 5 year pro-rated hose warranty

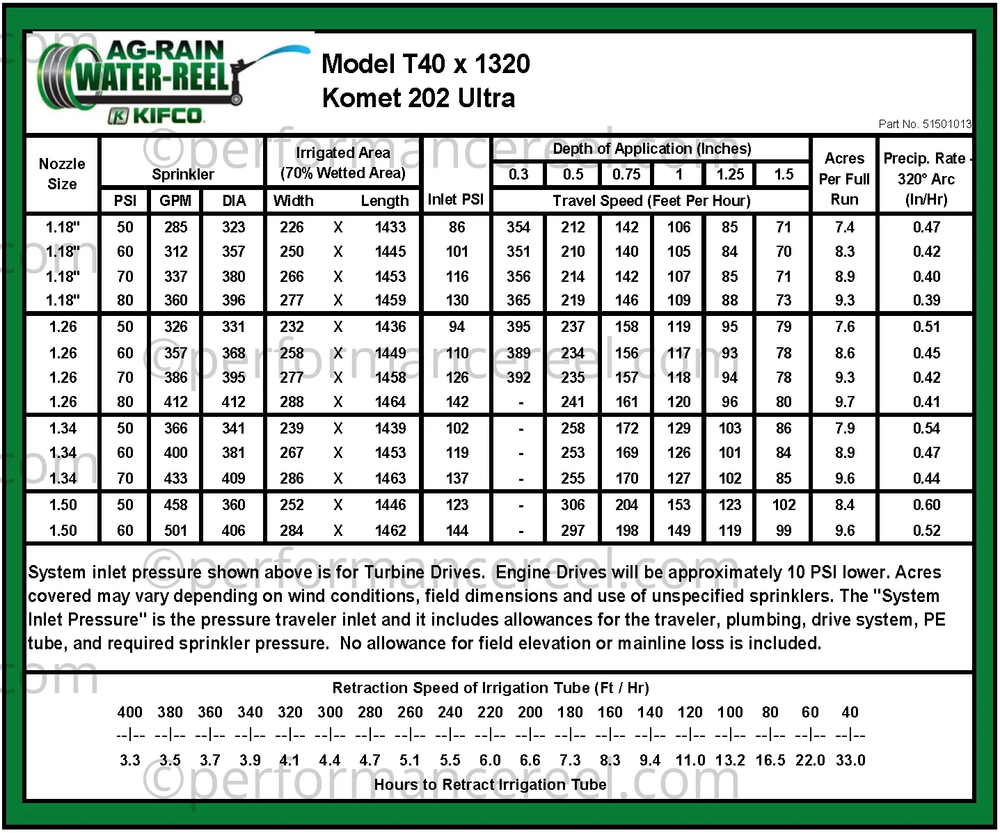

  • Tube Inner Diameter/Length: 4.0” x 1320’
  • Irrigated Width: 226’ - 298’
  • Irrigated Length: 1,433’ - 1,469’
  • Retraction Speed: 30 - 300 ft. per hr.
  • Irrigated Area Per Run (Acres): 7.5 - 10
  • Drive System: Turbine
  • GPM Range: 230 - 501
  • Inlet PSI Range: 86 - 150
  • Hours Per Full Run: 4.4 - 44
  • Dry Weight (lbs): 8,765
  • Weight w/ Water (lbs): 18,750
  • Chassis Size: ST7

We package our Kifco Water Reels with everything you need to get started. With just a few easy to follow instructions you can be up and running right away.

  • T40 x 1320 Ag Rain Water Reel
  • 30’ x 4” supply hose with 4” male ring lock supply end
  • Sprinkler Cart
  • Choice of Nelson SR 200 Big Gun or Komet 202 Ultra
  • Nozzle & Decal Kit (Size: 10mm, 12mm, 14mm, 16mm, 18mm)
  • Operating/Owner Manual
  • 1 Year Manufacturer Warranty Documentation
  • 5 Year Prorated Hose Warranty
