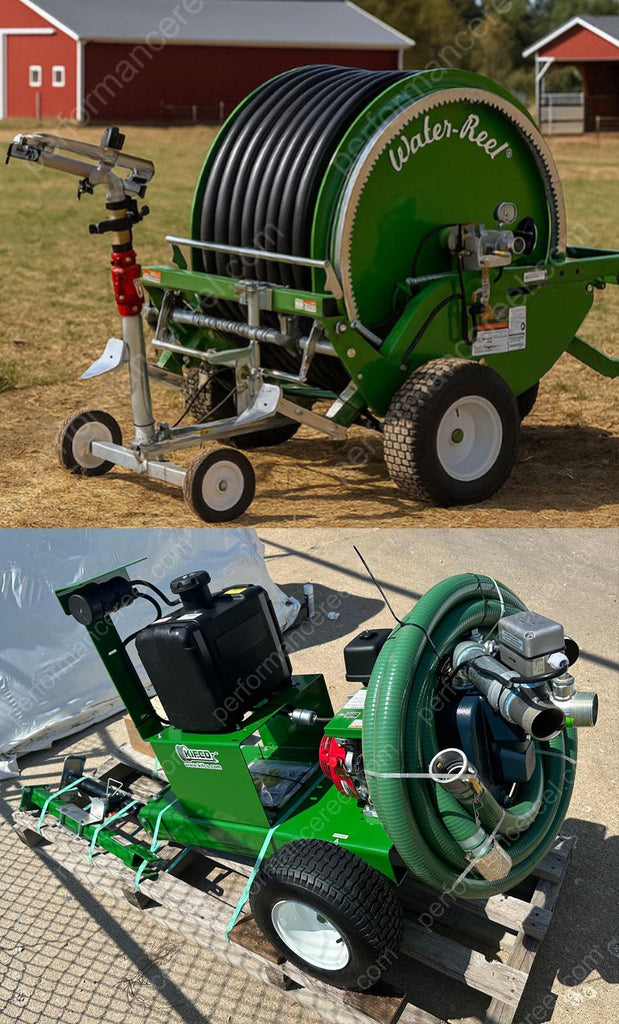

B140 Water Reel9Hp Self Priming Pump Package

KIFCO 9HP GAS PUMP & REEL HIGH PERFORMANCE PACKAGE DEAL!

✓ Kifco B140 1.4" x 350' With Nelson SR75

✓ 9HP High Pressure gas Honda/Franklin Pump On Trailer

✓ Nozzle Kit (Size: .40", .45", .50", .55")

✓ 2" x 30' Suction Hose

✓ 2" Cast Foot Valve & Strainer

✓ 100' 1.5" Camlock Supply Hose

The 9HP air-cooled engine driven gas primary pump is a great match to get the most out of your Kifco B140. The pump will automatically shut down when the reel comes the end of the run so you can focus on more important things.

Our Kifco 9HP comes standard on a trailer and features electronic ignition, low flow shut-off, high temp blow off valve, fuel filter, air filters, muffler, choke and throttle to protect your investment and allow for safe operation.

The B140 is by far our best selling Kifco. At about 500 pounds it is fairly easy to maneuver for multiple runs, and operates at a low 47 psi and only 18 gpm. We think it is a great value for a unit that can run an irrigated length of about 450 feet. We have one of our very own we use in combination with a T200L.

The Kifco Model B140 uses a water powered bellows drive which operates as low as 47 psi and 18 gpm with no additional pressure requirements making it more reliable than small turbines. Retraction speed control dial provides easy adjustment and setting of application rate. Sprinkler selector valve easily allows for automatic sprinkler shutoff at the end of the run or continued operation. Three large flotation tires make transport by hand or small garden tractor simple.

Specifications

• Tube Inner Diameter/Length: 1.4” x 350’
• Irrigated Width: 100’ - 198’
• Irrigated Length: 400’ - 449’
• Irrigated Area Per Run (Acres): 0.9 - 2.0
• Drive System: Bellows
• GPM Range: 18 - 80
• Inlet PSI Range: 47 - 149
• Hours Per Full Run: 3.7 - 10
• Retraction Speed: 20 - 85 ft. per hour
• Dry Weight: 530 lbs
• Weight With Water: 775 lbs
• Inlet Diameter: 1.5” Male Camlock
• Supply Hose: 15’ 1.5” Male x Female Camlock
• Warranty: 1 Year Kifco Manufacturer Warranty

Property Designs

Property irrigation layout · View full size

Charts

🖨︎ Open printable PDF

Product Downloads

PDFs open in a new tab to view, save or print.

What It Includes

We package our Kifco Water Reels with everything you need to get started. With just a few easy to follow instructions you can be up and running right away.

• B140 Water Reel
• 9HP High Pressure gas Honda/Franklin Pump On Trailer
• 2" x 30' Suction Hose
• 2" Cast Foot Valve & Strainer
• 100 foot 1.5" Supply Hose
• Sprinkler Gun Cart
• Nelson SR75, Sprinkler
• Nozzle & Decal Kit (Size: .40", .45", .50", .55")
• Operating/Owner Manual
• 1 Year Manufacturer Warranty Documentation
