T230 Water Reel
Traveler 2.3” ID x 720’ With Kifco 25HP Diesel Pump Package
- Stock #: 52123000N-25hp
- Inventory: In Stock In Stock Out of stock You can purchase this product but it's out of stock
- Barcode:
Free FreightFast and free express freight in the continental U.S.
Free 24-Month Extended WarrantyExclusive full replacement coverage.
KIFCO DIESEL PUMP & REEL PACKAGE DEAL FOR MAXIMUM PERFORMANCE!
✓ Kifco T230 2.3" x 720' With Nelson SR75 or Komet Twinmax
✓ 25HP Diesel Kohler/Rovatti Primary Pump Trailer
✓ Nozzle kit matched to your selected sprinkler
✓ 4" x 30' Suction Hose
✓ 4" Cast Foot Valve & Strainer
✓ 100' 2" Camlock Supply Hose

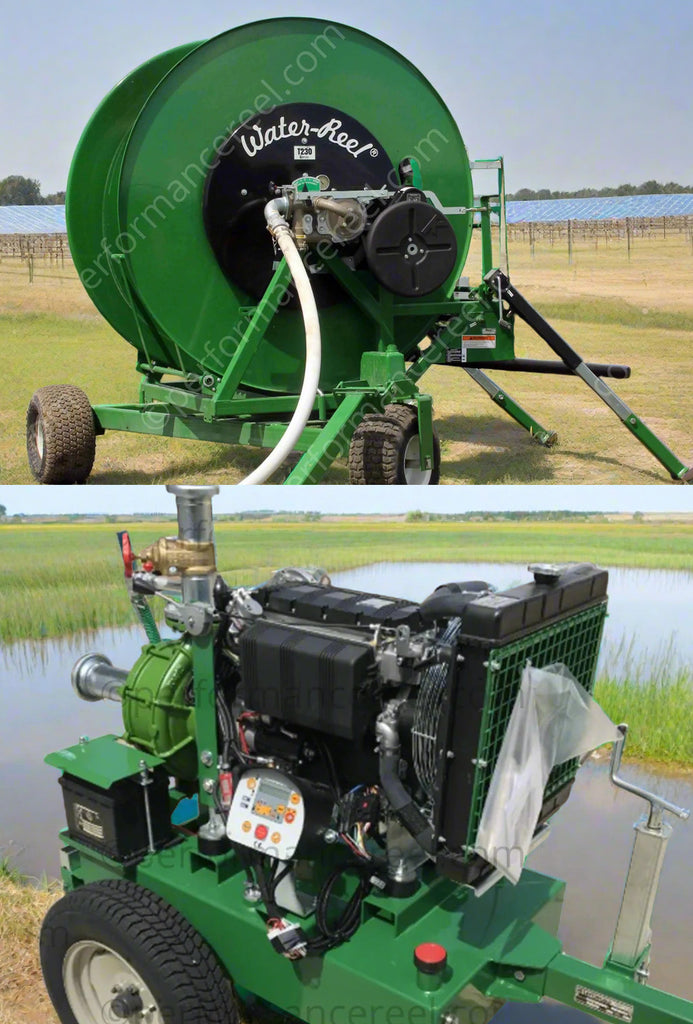

This 25HP Kohler diesel engine, paired with a Rovatti pump, is the perfect match for the Kifco T230, delivering the power needed to reach maximum performance and high efficiency in the field. Whether you're irrigating large fields or handling demanding water transfer tasks, this combination ensures optimal flow rates and consistent pressure, helping your system run at its full potential.
Our Rovatti Pumps, close-coupled to high-performance Kohler diesel engines, deliver powerful and consistent water movement for a wide range of applications. Each unit is equipped with a user-friendly control panel that automatically shuts down the system for low oil pressure, low water pressure, or high engine temperature—protecting your investment and ensuring safe operation. Built standard on a compact trailer kit, these pump units are easy to transport and come ready with a hand primer and rugged mechanical seal for dependable performance in the field.
Fuel efficiency meets durability with an 18.5-gallon fuel cell providing up to 12 hours of runtime at just 1.5 gallons per hour. These pumps are fully compliant with EPA Final Tier 4 emissions standards, making them an environmentally responsible choice without sacrificing power or reliability. Whether you're handling irrigation, dewatering, or industrial applications, this pump-and-reel combo is built to work as hard as you do.
The NEW T230 is a one of a kind, American made traveler featuring a roller bearing turntable that allows for 180 degree rotation to irrigate in the opposite direction. The T230’s 3 wheel design can easily be towed around with your ATV or utility vehicle without the heavy tongue weight, eliminating the need for a dedicated tractor to deploy it.
The T230 features 2.3” ID x 720’ American made MDPE tube and a three-wheeled chassis with large flotation tires and easy to use crank jack stabilizer legs for stability. With the same rugged and reliable construction that Kifco has included in their equipment since 1964, the T230 features automatic shutoff for unattended operation, a mechanical levelwind system to prevent kinking and mis-wraps for uniform tube rewinding, and a sprinkler selection valve which easily allows for automatic sprinkler shutoff at the end of the run.
The Kifco Model T230 uses a turbine drive which operates as low as 54 psi and 51 gpm (only 10 psi or less used in the turbine) and features simple and accurate speed control making it the most efficient turbine in the market
Specifications
- Tube Inner Diameter/Length: 2.3” x 720’
- Irrigated Width: 142’ - 229’
- Irrigated Length: 791’ - 834’
- Irrigated Area Per Run (Acres): 2.6 - 4.4
- Drive System: Turbine
- GPM Range: 51 - 147
- Inlet PSI Range: 54 - 142
- Hours Per Full Run: 6 - 34
- Retraction Speed: 21 - 120 ft/hr
- Dry Weight: 2,500 lbs
- Weight With Water: 3,800 lbs
- Inlet Diameter: 2” Male Camlock
- Supply Hose: 15’ 2” Male x Female Camlock
- Warranty: 1 Year Kifco Manufacturer Warranty
Charts
T230 · Komet Twinmax performance chart
View / print Komet Twinmax chart
Pump curve
Product Downloads
PDFs open in a new tab to view, save or print.
What It Includes
We package our Kifco Water Reels with everything you need to get started. With just a few easy to follow instructions you can be up and running right away.
- T230 Water Reel
- 25HP Diesel Kohler/Rovatti Primary Pump Trailer
- 4" x 30' Suction Hose
- 4" Cast Foot Valve/Strainer
- 100 foot 2" Supply Hose
- Sprinkler Cart
- Nelson SR75 or Komet Twinmax sprinkler (your selection)
- Nozzle & Decal Kit matched to your selected sprinkler
- Operating/Owner Manual
- 1 Year Manufacturer Warranty Documentation
